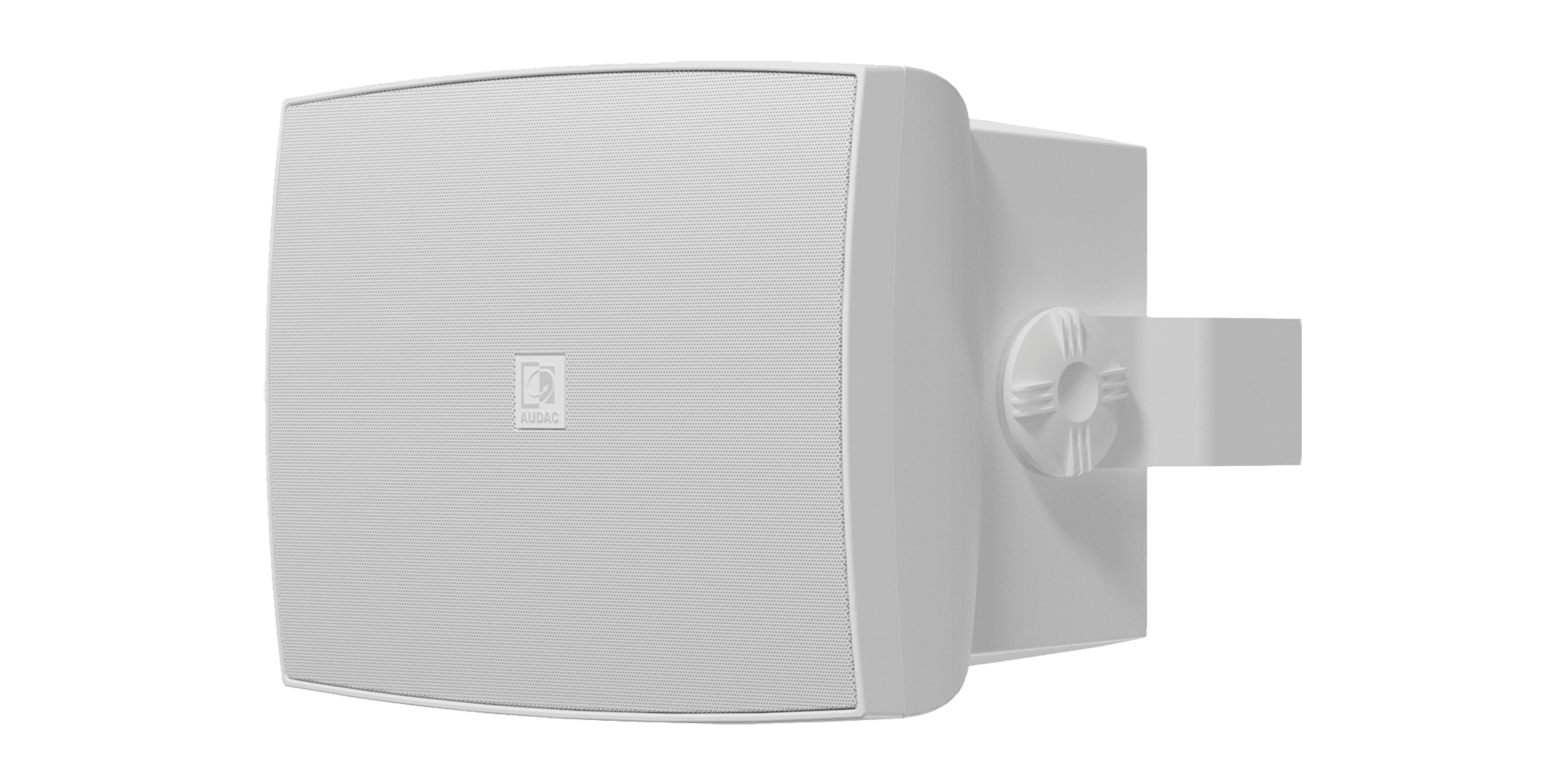

WX802MK2/W
WX802MK2/W
- 8 inch 2-weg klankkast
- 1 inch dome tweeter
- Verticale en horizontale montage mogelijk
- Aansluiting klemmenblok
- 100V en lage impedantie aansluitmogelijkheid
- Multi-tapping 100V lijntransformator

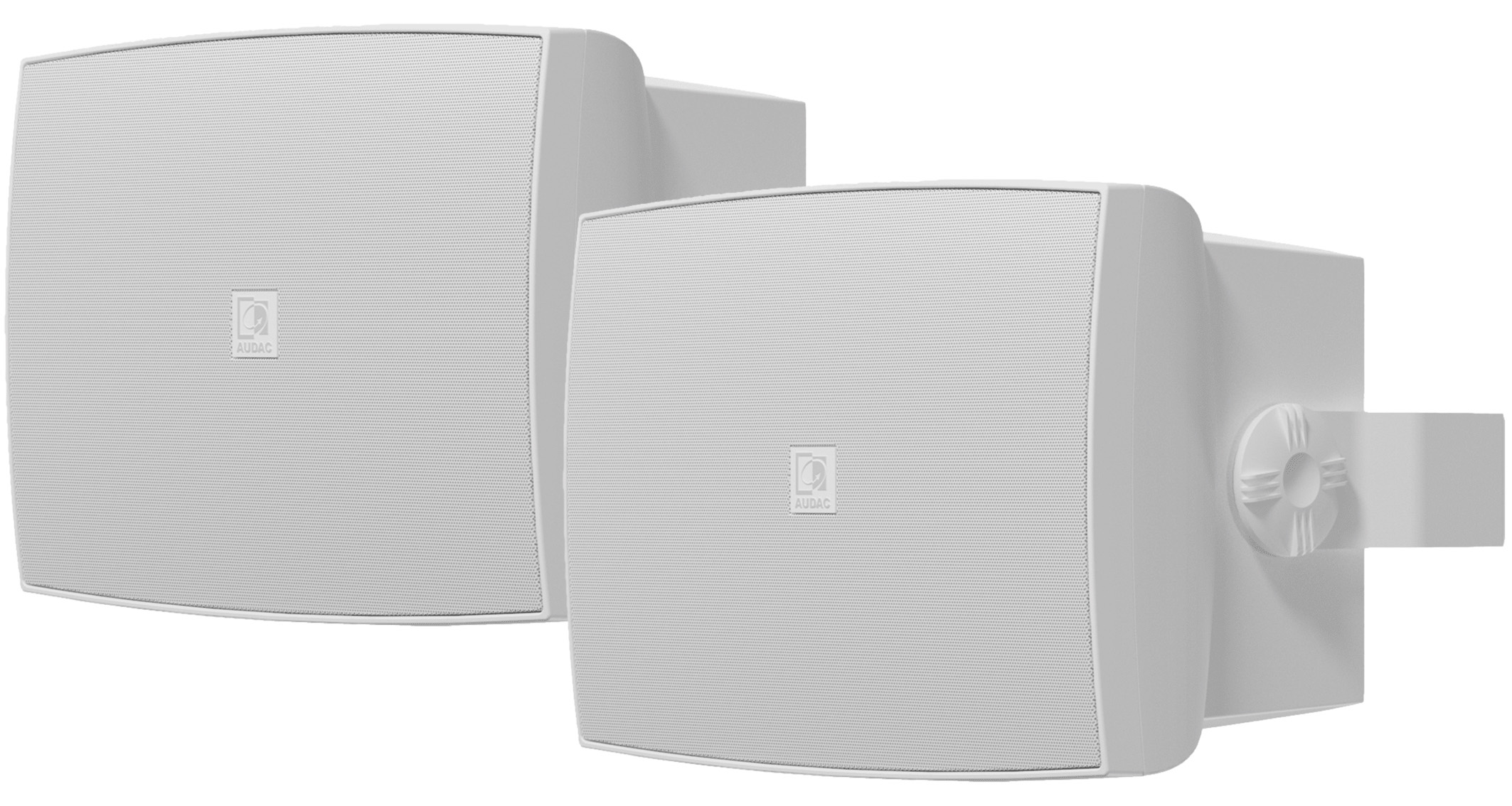

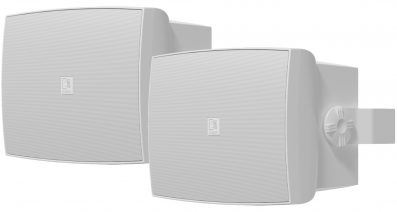

€580,55 (incl.21%BTW) Per paar
Beschikbaarheid: Snel leverbaar
Extra informatie
Merken |
---|
Technische info
System specifications | ||||
---|---|---|---|---|
Speaker type | 2-way | |||
Max. Power | 140 W | |||
RMS Power | 70 W | |||
Impedance | 16 Ω | |||
Line Transformer Tappings | 1 | 60 W / 167 Ω | ||
2 | 30 W / 333 Ω | |||
3 | 15 W / 667 Ω | |||
Sensitivity (1W/1m) | 89 dB | |||
Sound Pressure (Max. W/1m) | @ 16 Ω | 108 dB | ||
@ 100 V | 106 dB | |||
Frequency | Response (± 3 dB) | 60 Hz – 17 kHz | ||
Range (-10 dB) | 50 Hz – 20 kHz | |||
Crossover | Frequency | 2.4 kHz | ||
Type | Passive built-in | |||
Dispersion | Horizontal | 110° | ||
Vertical | 110° | |||
Drivers | HF | 1” | ||
LF | 8” |
Product Features | ||||
---|---|---|---|---|
Dimensions | 358 x 276.1 x 285.6 mm (W x H x D) (Incl. bracket) | |||
Weight | 7.5 kg | |||
Operating temperature | -25 °C ~ 70 °C | |||
Construction | ABS | |||
Mounting & handling | Mounting bracket | |||
Front finish | Steel grill | |||
Colour | White (RAL9003) |
