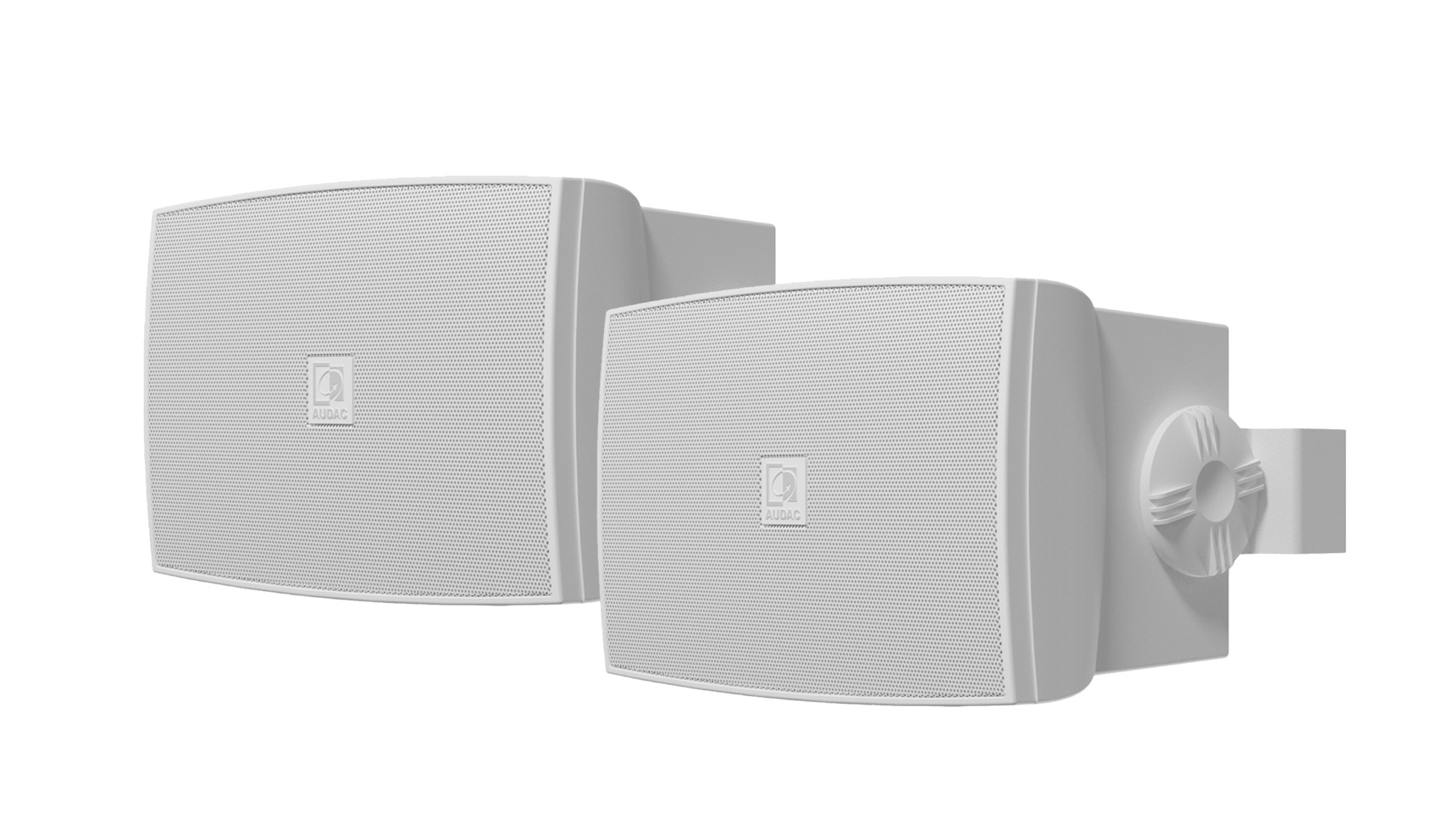

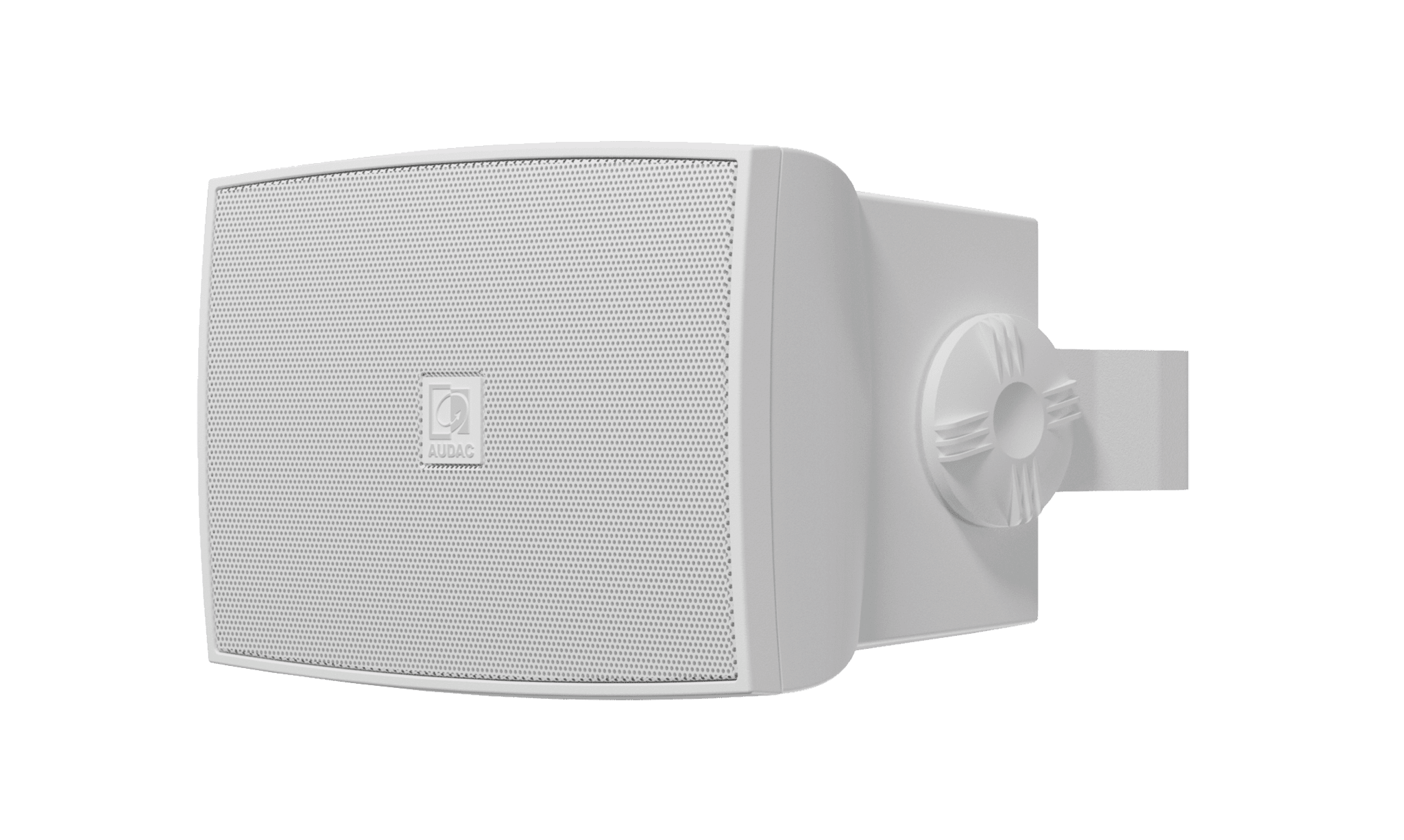

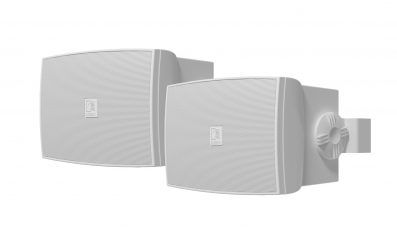

WX302MK2/W
WX302MK2/W
- 3 inch 2-weg klankkast
- 1 inch dome tweeter
- Verticale en horizontale montage mogelijk
- Aansluiting klemmenblok
- 100V en lage impedantie aansluitmogelijkheid
- Multi-tapping 100V lijntransformator
€182,25 (incl.21%BTW) Per paar
Beschikbaarheid: Snel leverbaar
Extra informatie
Merken |
---|
Technische info
System specifications | ||||
---|---|---|---|---|
Crossover | Frequency | 2.5 kHz | ||
Type | Passive built-in | |||
Drivers | HF | 1” | ||
LF | 3” | |||
Frequency | Range (-10 dB) | 60 Hz – 20 kHz | ||
Response (± 3 dB) | 90 Hz – 18 kHz | |||
Impedance | 8 Ω | |||
Ingress Protection rating | IP40 | |||
Line Transformer Tappings | 1 | 20 W / 500 Ω | ||
2 | 10 W / 1000 Ω | |||
3 | 5 W / 2000 Ω | |||
Max. Power | 60 W | |||
Sensitivity (1W/1m) | 85 dB | |||
Sound Pressure (Max. W/1m) | @ 100 V | 95 dB | ||
@ 8 Ω | 100 dB | |||
Speaker type | 2-way | |||
RMS Power | 30 W | |||
Dispersion | Horizontal | 100° | ||
Vertical | 100° |
Product Features | ||||
---|---|---|---|---|
Dimensions | 188.4 x 129 x 164.8 mm (W x H x D) (Incl. bracket) | |||
Weight | 1.66 kg | |||
Operating temperature | -25 °C ~ 70 °C | |||
Construction | ABS | |||
Mounting & handling | Mounting bracket | |||
Front finish | Steel grill | |||
Colour | White (RAL9003) | |||
Accessories | Included | Mounting bracket |
